UltraCarbon VOC Enclosure
UltraCarbon VOC Enclosure
The UltraCarbon VOC Enclosure controls VOC and particulate emissions without the need to vent vapors outside. The large enclosure can house full size FDM or resin 3D printers. The Ultra Carbon Enclosure is an engineered solution with HEPA filtration for particulate emissions and a large activated carbon bed to capture VOC emissions. Print ABS or ASA and other filaments without the need to vent vapors outside or modify you printer in any way. The UltraCarbon VOC Enclosure can be used for crafts as well to allow painted or glued items to dry without odors.
You can now use your printer at work or at home without the need to vent odorous and harmful vapors outside.
The UltraCarbon VOC enclosure includes 3 pounds of virgin activated carbon that will last for hundreds of spools of printing. The large carbon bed ensures the vapors are in contact with the carbon long enough to effectively capture the VOCs. Prior to the carbon bed the vapors must first pass through a dual HEPA filter inlet to capture any particulate mater.

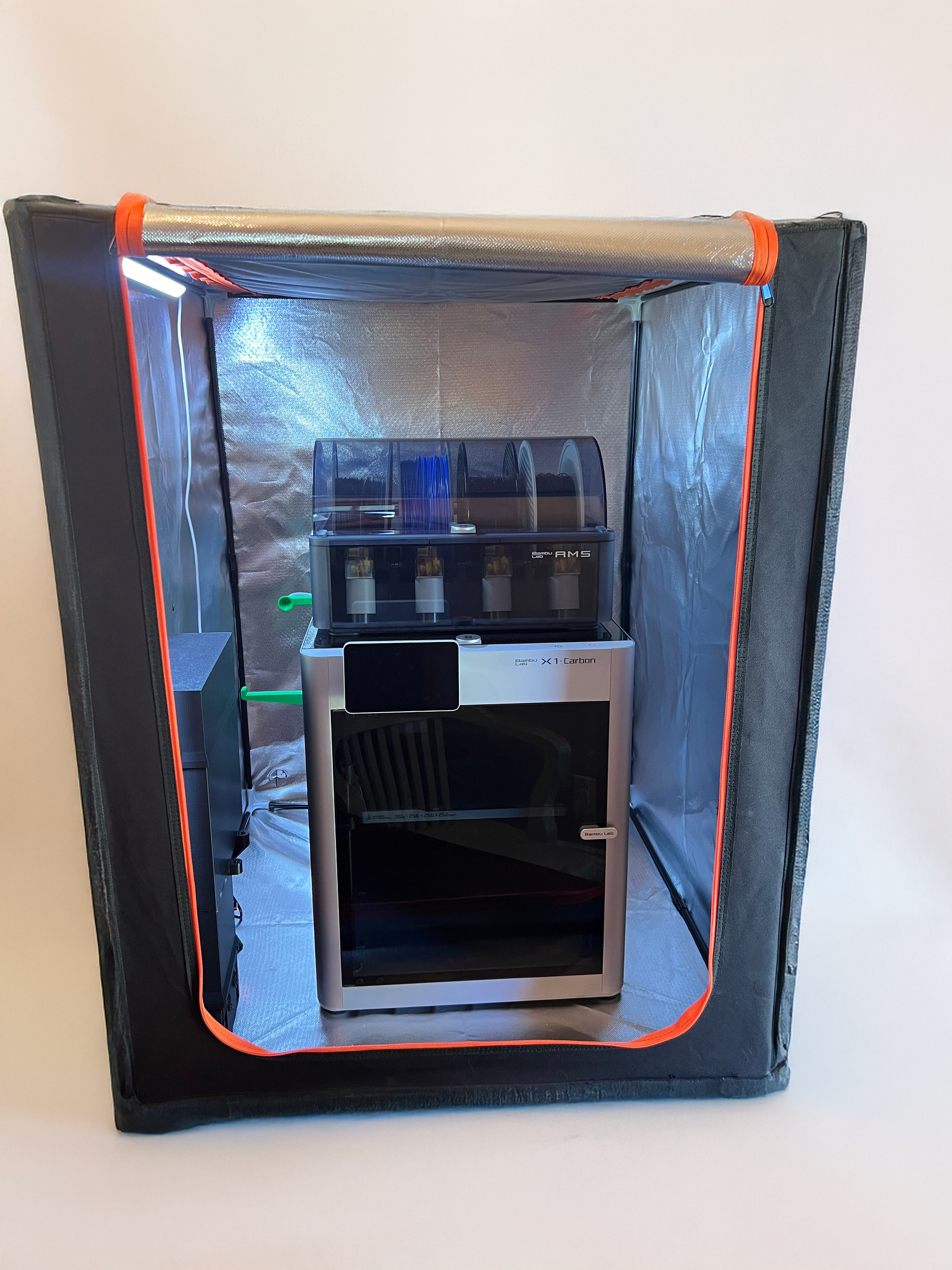

The UltraCarbon can house a Bambu X1 with AMS with no issue and even has plenty of room to open the AMS. Printer not included.
Share
Features
- Included activated virgin carbon pellets for best available VOC control
- Large carbon bed to ensure proper contact time of vapors with carbon for proper adsorption of VOCs.
- Dual HEPA filter to capture particulates.
- High pressure fan specifically designed to overcome the resistance of air flow created by the HEPA filters and the large carbon bed. The fan can create about ten times more pressure than a standard computer case fan.
- Huge carbon capacity for very infrequent carbon changes.
- Extra large enclosure to fit most FDM and resin printers.
- Can be used to to allow glued and or painted items to dry without odors.
- Step by step assembly instructions via YouTube video. Only screwdriver and hex driver needed for assembly.
Specifications
- Enclosure dimensions: 27.5 in Wide, 35.4 in Tall, 29.5 in Deep. Note that HEPA / Carbon unit sits inside the enclosure and uses approximately 3.5 inches of width inside the front third of the enclosure.
- 3 lbs of virgin activated 4mm carbon pellets.
- 120V AC 60 watt power supply.
- 62 dB at 4 ft

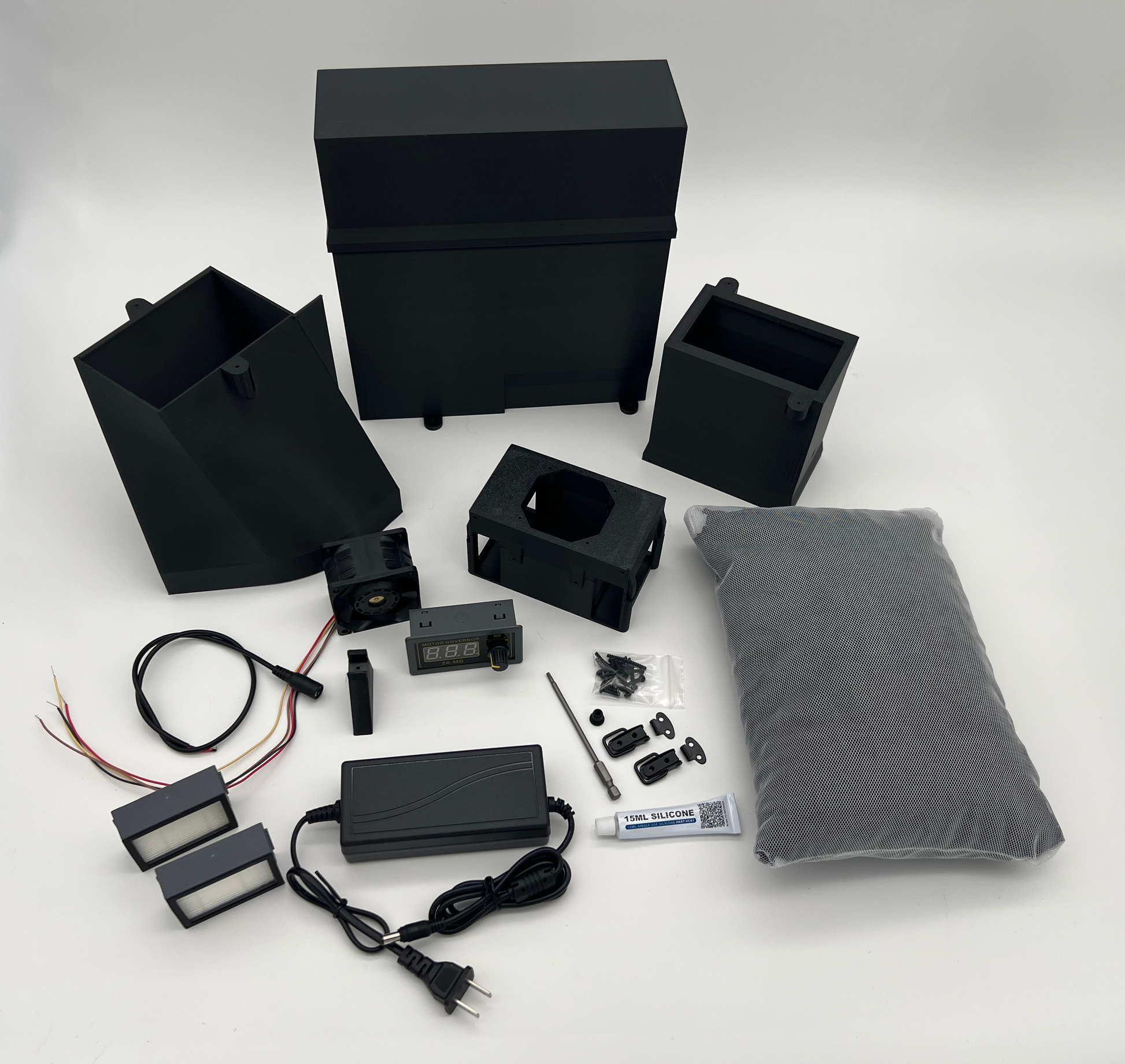

Kit Contents
- Enclosure with fire resistant liner
- 3 lbs virgin activated carbon in mesh bag for easy rinsing prior to use
- Fan housing, carbon bed housing with lid, and exhaust diffuser
- Dual HEPA filters (iRobot vacuum compatible for easy purchase of replacements)
- High pressure fan
- Fan speed controller (recommend set to 40)
- Silicone for options sealing of components during assembly
- Grommet for fan wires existing fan enclosure
- 120V AC to 12V DC power supply
- Power lead to connect power supply to fan controller
- Screws
- Clasps (2) for carbon bed lid
- T10 Torx bit 4 inch
